Atum EclipseX

Specifications of the Atum EclipseX

• Size
Tire:700c
Frame :54cm

• Frame
Aluminum Frame

• Fork
Atum Aluminum – Lock – Preload – 100mm Suspension Travel

• Handlebar
Atum – Aluminum – Diameter 31.8mm – Width 720mm

• Stem
Atum Aluminum diameter 31.8mm, width 100mm

• Seatpost
Atum Aluminum diameter 27.2mm, Length 350mm

• Seatpost Clamp
Aluminum – Quick Release – 31.8mm

• Saddle
Selle Royal Mach2 – Width 14cm – Length 27cm

• Pedals
Wellgo R199 – Aluminum

• Shifters
Shimano ST-EF500

• Front Derailleur
Shimano Tourney FD-TX800

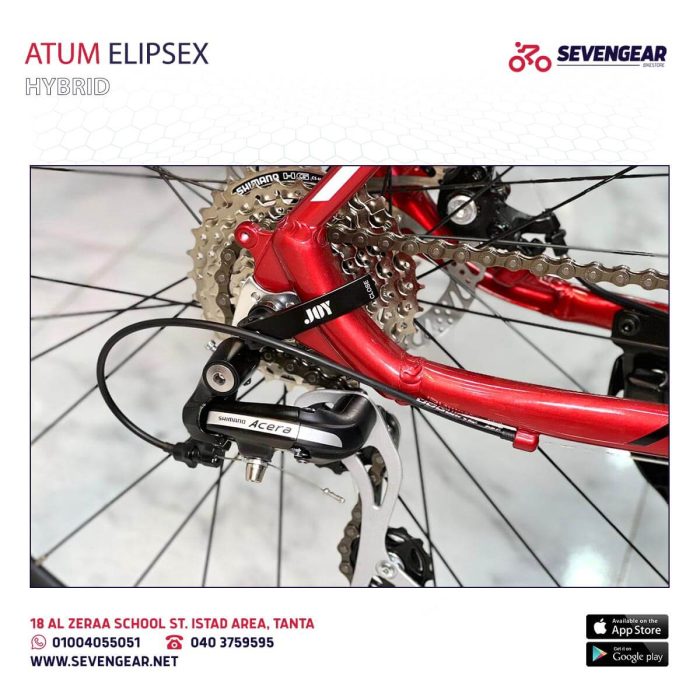

• Rear Derailleur
Shimano Acera RD-M360

• Brakes
TEKTRO MD-M280 Mechanical Disc Brakes – 160mm F+R Disc

• Cassette
Shimano CS-HG41-8 8-Speed 11-32T

• Crankset
Shimano Tourney FC-TY301 28-38-48T – 170mm – Aluminum

• Chain
KMC

• Rims
Atum Aluminum Rims – 32 Spokes

• Hubs
Joytech Aluminum 32H – Ball Bearing

• Spokes
Stainless Steel

• Tires
Kenda Kwest K-193 700*32C
– Minimum Pressure 50PSI
– Maximum Pressure 85PSI

• Extras
– Internal Cables
– Quick Release Hubs
